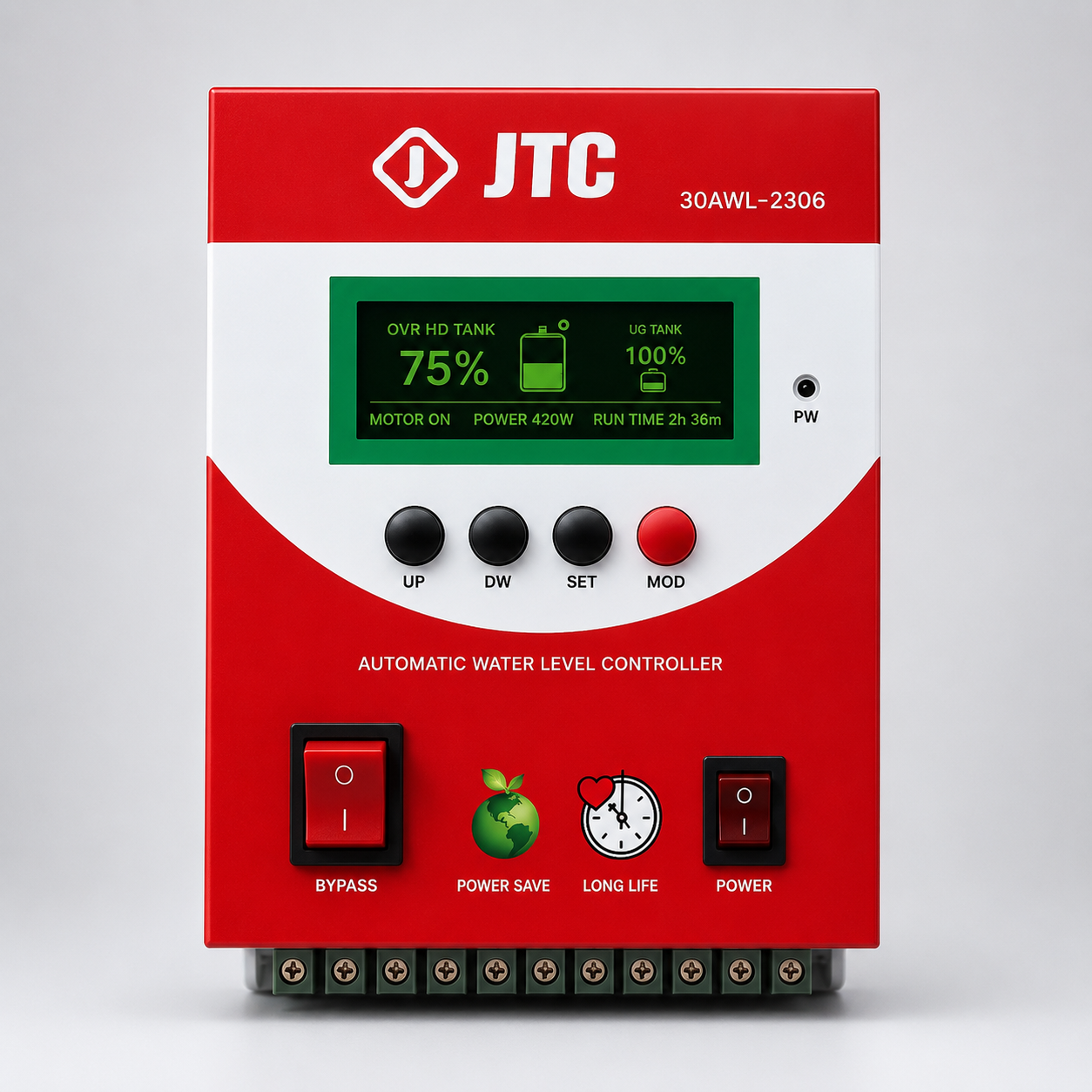

JTC 2306Ai
Smart Water Controller with AI Auto Cut-Off
Automatically controls your pump based on overhead tank level, learns how long your tank takes to fill, and alerts you when something is wrong — before your pump burns out.
Four-level overhead tank sensing (25/50/75/100%), optional underground tank dry-run protection, and built-in voltage protection on a 16×2 LCD display.
Motor ControlTank SensingAI Auto Cut-OffVoltage ProtectionModelSoftware VersionMicrocontrollerDisplayOverhead Tank SensorsUnderground Tank SensorsOperating ModesDefault Motor ON LevelDefault Motor OFF LevelDefault Max Motor RunDefault Low Voltage CutoffDefault High Voltage CutoffDefault Motor WattDefault Watt RateDefault Dry-Run Detection TimeDefault Dry-Run Restart DelayDefault Motor ON DelayWatchdog TimeoutPassword24-Hour Self-RestartProgram Memory
৳10,500
Smart, Safe, Reliable
Complete Protection for Your Water System
The JTC 2306Ai automatically starts and stops your pump based on the overhead tank level, monitors the underground tank for dry-running, and guards against bad mains voltage — all from a single controller.
Single Motor Control
Auto Start-Stop
Dry-Run Protection
Voltage Protection
Intelligent Control

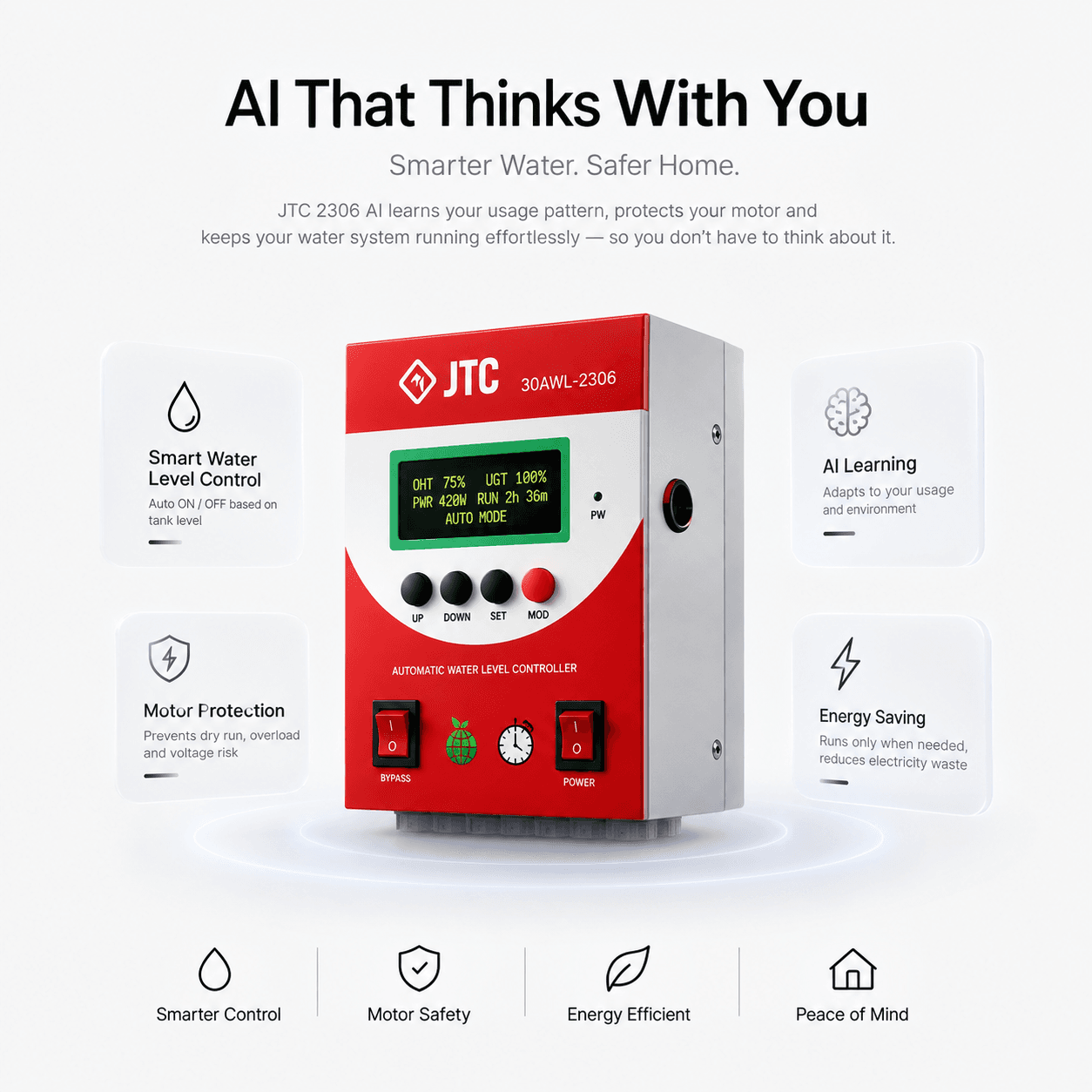

AI That Learns Your Tank
The 2306Ai times how long each 25% fill and drain step takes and learns it over repeated cycles. If a motor runs 1.5× longer than its learned fill time without the tank reaching the OFF level, it stops the pump and shows an alert — catching a weakening pump, failed foot valve, or leaking pipe even when the water-level sensors themselves still read correctly.
What the AI learns
- Per-quarter fill and drain timings for your specific tank
- Weighted rolling average — adapts as usage changes
- Stays silent on stages it has not learned yet — no false alarms
- Learned data can be cleared after a pump or pipe replacement

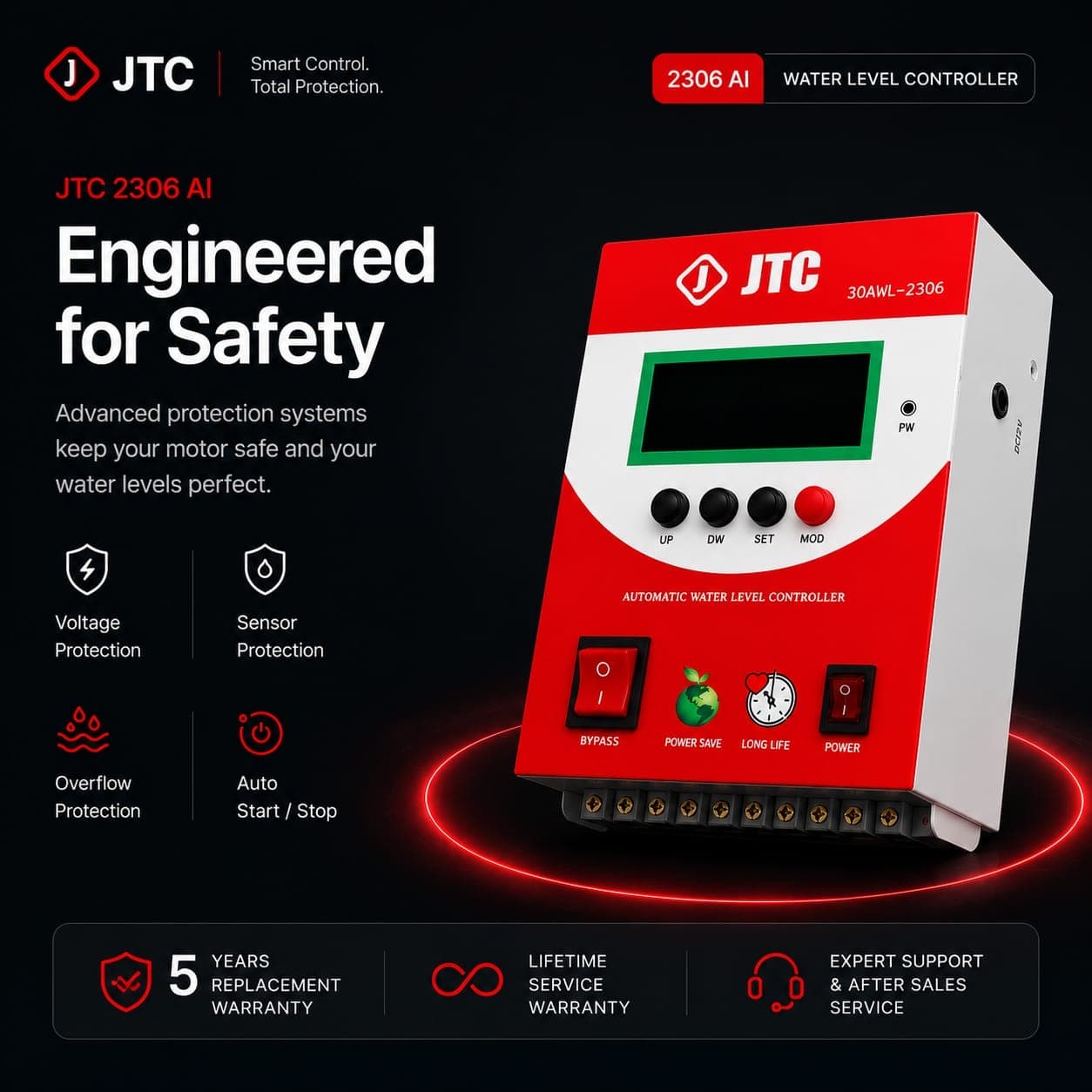

Advanced Protection
Safety in Every Layer
Dry-Run Protection
Stops the motor if the underground tank runs empty. Configurable detection and retry timers prevent pump damage.
Voltage Protection
Independently configurable low and high voltage cutoffs with 100-sample peak-detect measurement against an internal 1.1 V reference.
Max Run-Time Cutoff
Configurable continuous run-time limit stops the motor even if every sensor still reads correctly — a last-resort safety net.
Live Sensor Test
Dedicated test mode shows raw state of every OHT and UGT sensor plus current AC voltage and relay state — without running the motor.
6-Page Report Mode

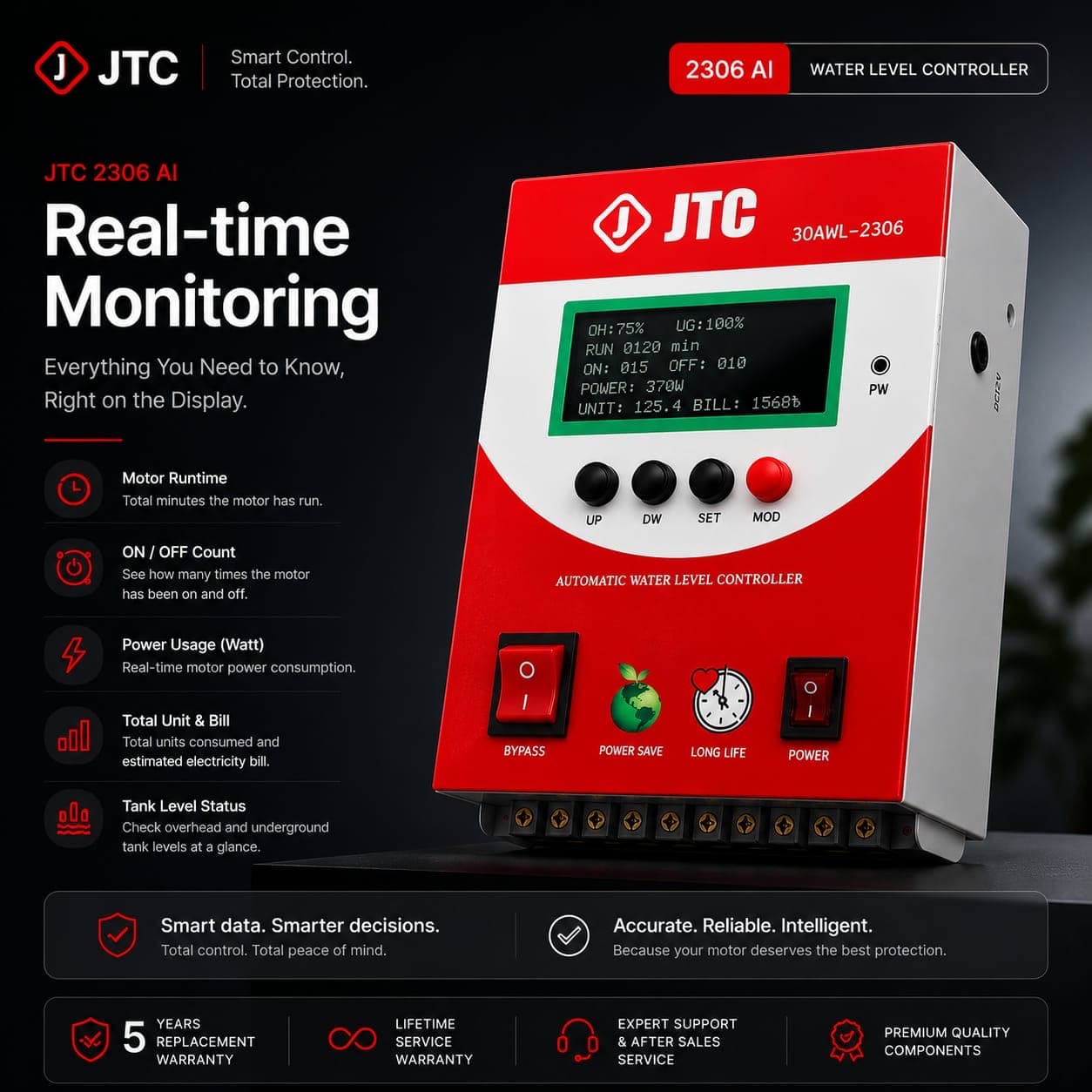

Total run minutes, start/stop cycles, kWh and estimated electricity bill, current mode and AI status, plus learned fill/max-run timings.
What happens if the sensors fail?
The AI Auto Cut-Off acts as a backup: if the pump runs 1.5× longer than the learned fill time without the tank reaching the OFF level, the controller stops the motor and shows an alert. The max run-time cutoff provides an additional hardware-independent safety net.
Does the AI need time to learn?
Yes. The controller times each 25% fill and drain step and builds a weighted rolling average over repeated cycles. It stays silent on any stage it has not learned yet — it will not raise false alarms on a new installation. Learned data can be cleared after a pump or pipe replacement.
Can I use it without an underground tank sensor?
Yes. The underground tank sensor input is optional. When disabled, those same pins can be configured as a water-flow detection input instead.
What is the programmable Motor Timer for?
In Semi-Auto mode you can set a timed run between 5 and 240 minutes in 5-minute steps. The motor runs for the set duration then stops automatically.
Smarter Water Control Starts Here
Protect your pump, save electricity, and know the moment something is wrong — with the controller that learns your tank.
৳10,500
